Moster Plus DS DARK evolution maintenance kit 100h

Moster Plus DS  DARK evolution  maintenance kit 100h

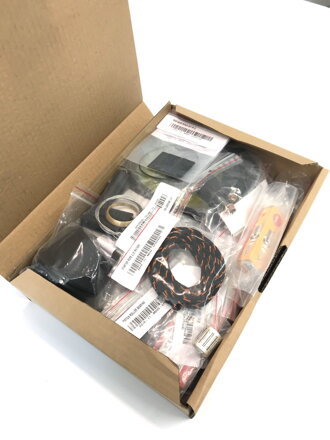

This kit contains all the parts you need to change after 100 hours based

238 €

285,60 € incl. VAT

Availability: In Stock
Shipping date: 7.12.2020

Producer: Vittorazi Motors Italy

complete list of parts:

  • Oil seals viton 20/35/7 mm (Set of 2) (M006)
  • Piston roller bearing (M009)
  • Piston pin O 16mm (M011)
  • Pin lock rings (Set of 2) (M012)
  • Piston rings GS10 chromed (Set of 2) (M013)
  • Cylinder gaskets - 0,20/0,30/0,50 mm (Set of 5) (M014)
  • OR head viton O 69,57 x 1,78 mm (M016)
  • Copper lock nut high temperature 8 x 1,25 mm (Set of 4) (M019)
  • Spark plug NGK BR9ES (M020)
  • Antivibration mount 30 x 30 mm - M8 x 15 mm (Set of 2) (M021a)
  • Antivibration mount 30 x 30 mm - M8 x 25 mm (Set of 2) (M021b)
  • Starter rope 2,20 meters (M043)
  • Reed valve petals (Set of 2) (M082)
  • O-ring viton O 33,05 x 1,78 mm (M091a)
  • Air-box rubber manifold (M093a)
  • Series membranes and gaskets Walbro (M097)
  • Bearing 42/20/12 mm (Set of 2) (M114)
  • Kit bronze bushing 40/50 hours with springs and safety cables (ME143)
  • Plastic hooks (Set of 2) (MP055)
  • Elastic ring for hooks (MP057)
  • Bearing 35/15/11 mm - 2Z and bearing 35/15/11 mm - 2HRS (MP106)
  • Drum/Pinion cap (MP107a)
  • Belt Poly V PJ483 13 grooves (MP117)
  • Noise absorbent material (MP159)
  • Fuel hose silicone/ 60cm
